Custom Hollow Pins with 30–70% Material Savings
|
Jingcheng manufactures custom hollow pins to customer drawings for electrical, automotive and industrial applications. Dimensions, wall thickness, materials, plating and end configurations can be customized based on electrical, mechanical and assembly requirements. |
|
||||||||
Hollow Pin & Options
Five proven connection technologies.
One commitment to performance.

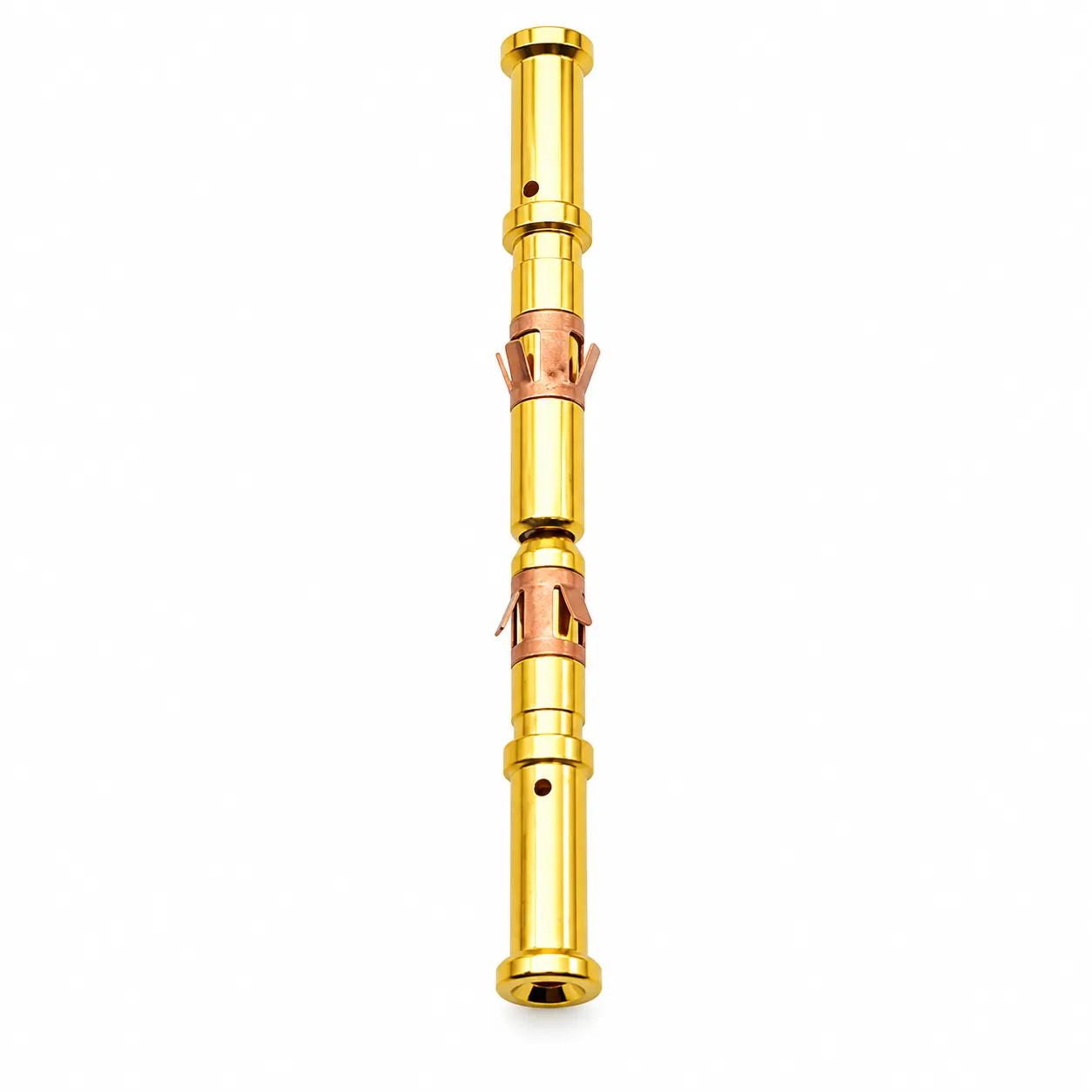

1. Crimped
Crimp-compatible hollow pins can be designed with dedicated termination features that allow the conductor to be mechanically secured without additional soldering. The crimp area can be adjusted according to wire size, retention requirements, and assembly conditions – click here.

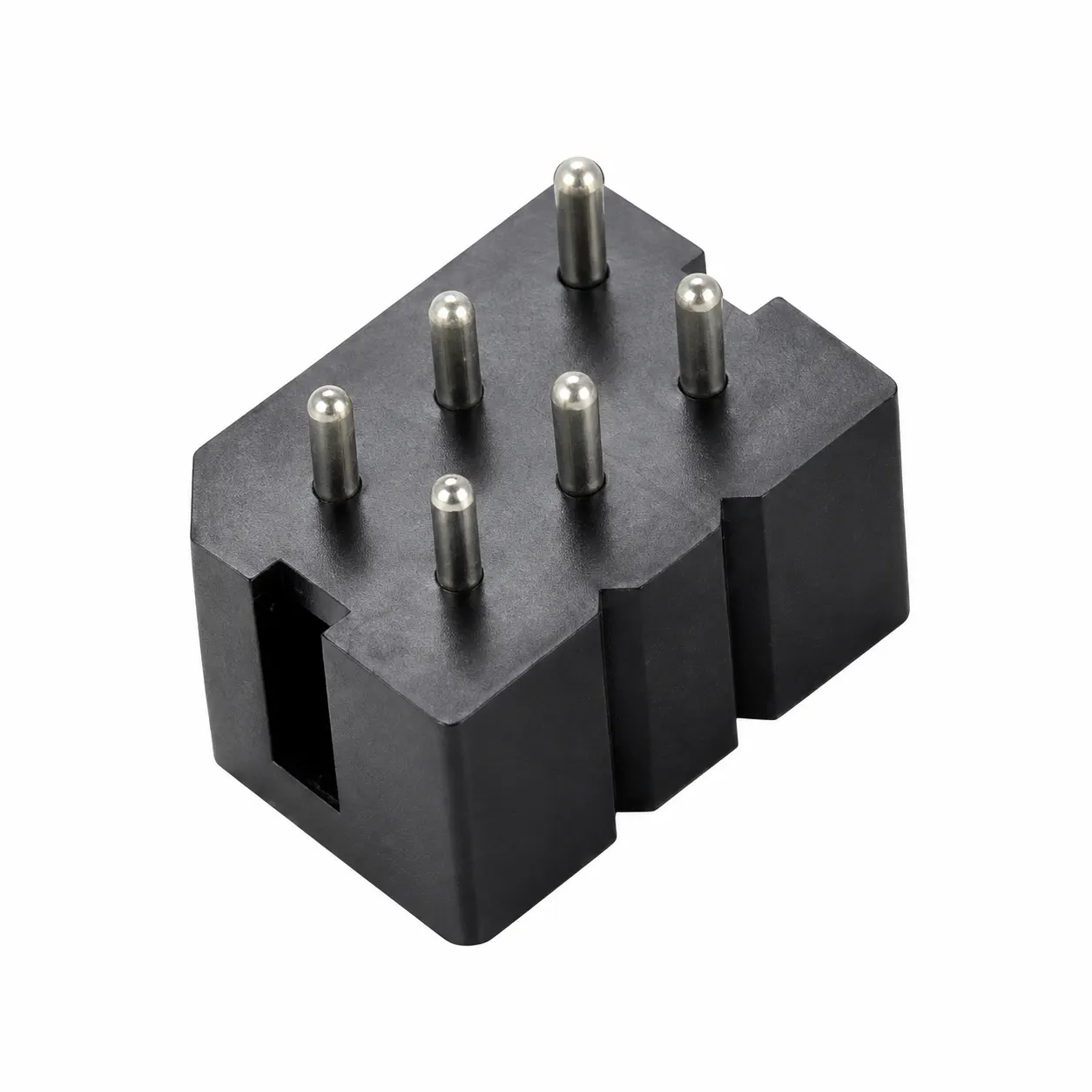

2. Press-fit
Press-fit hollow pins can be manufactured with controlled interference features for insertion into matched holes or assemblies. Pin geometry, insertion force, retention force, and dimensional stability should be considered together during design.
– click here.

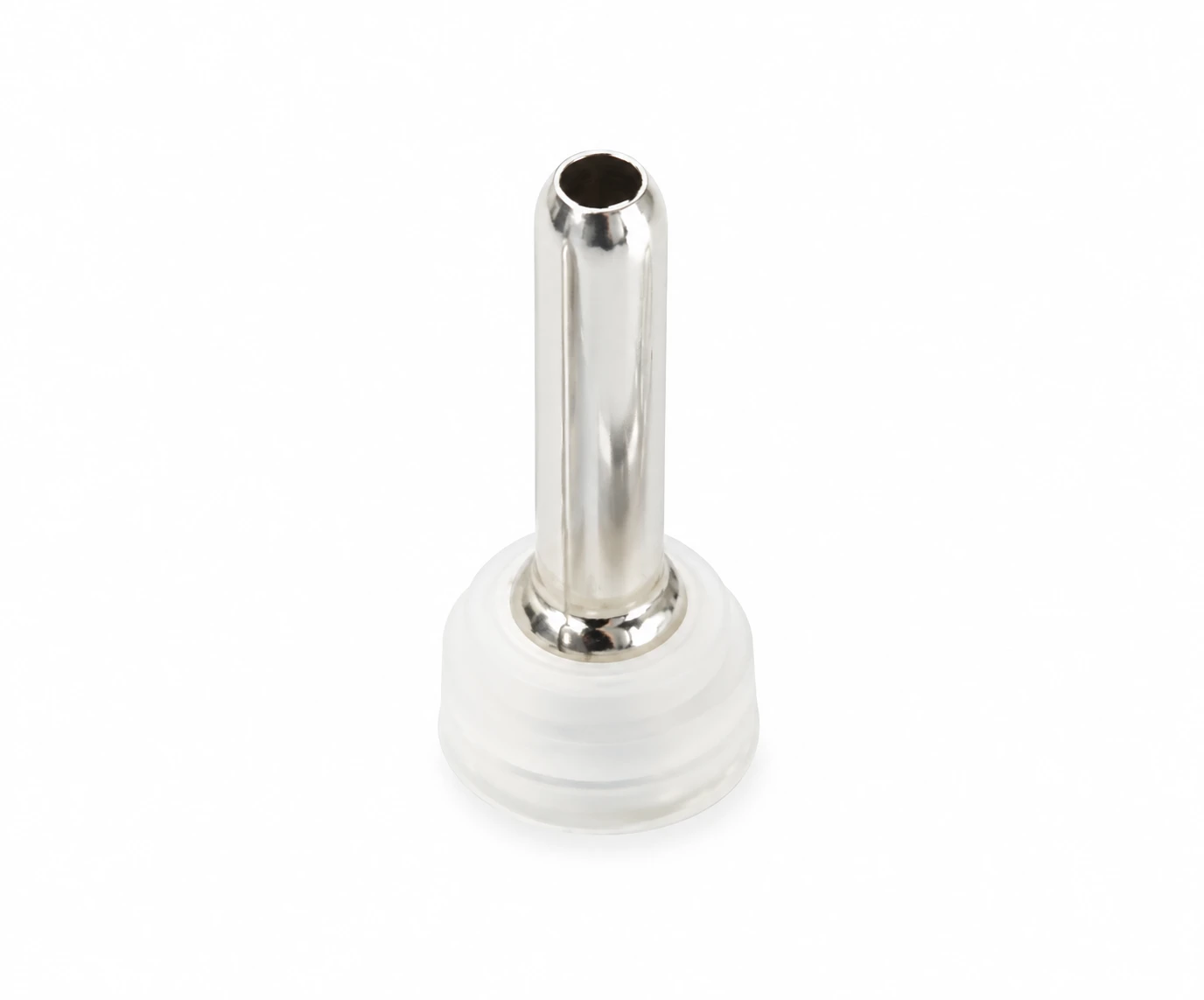

3. Staked
Staked hollow pins can incorporate shoulders, grooves, or deformable areas that support mechanical locking after installation. This approach can provide stable positioning where permanent retention is required.
– click here.

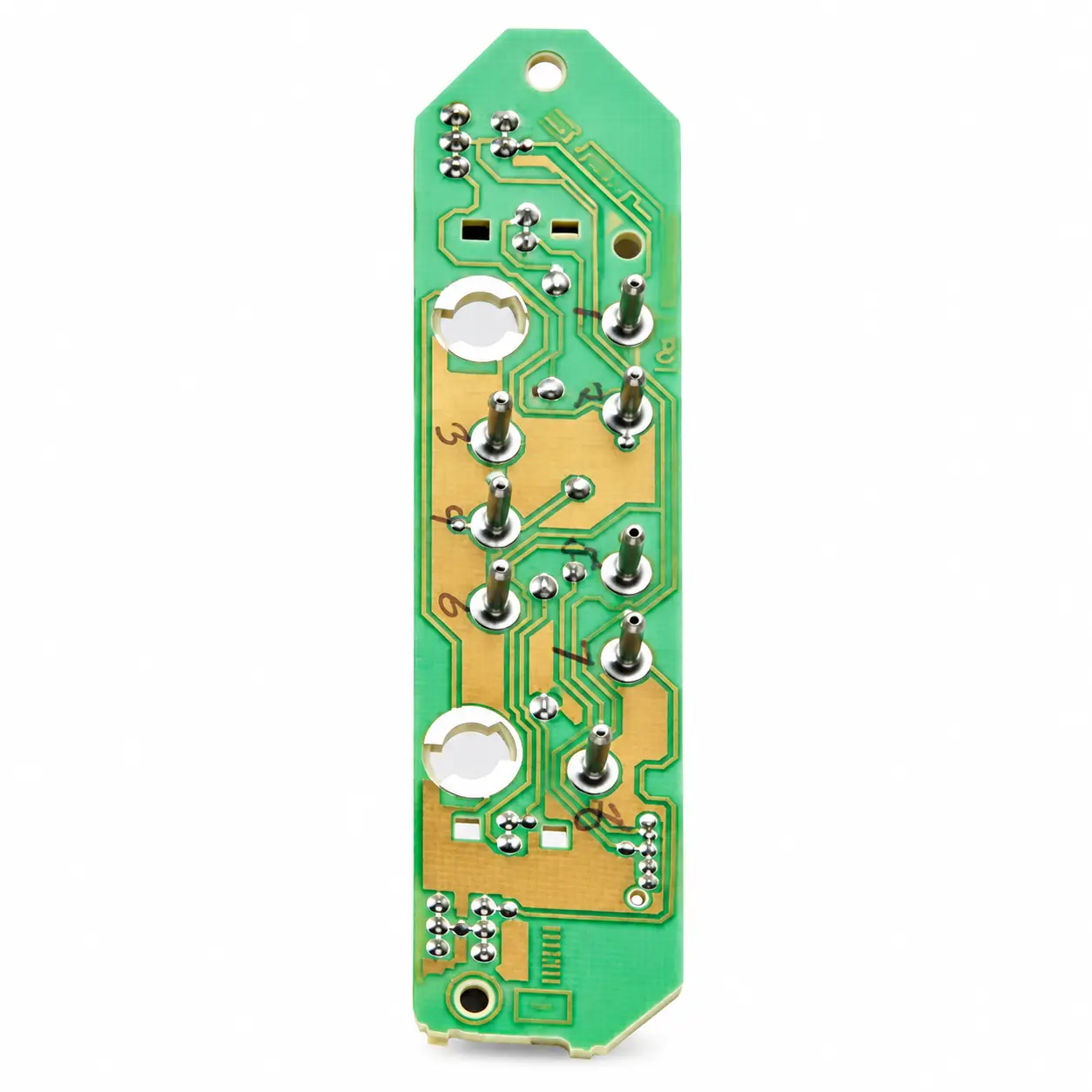

4. Soldered
Hollow pins intended for soldered assemblies can be designed with dimensions and surface conditions suited to the required soldering process. Material, plating, heat exposure, and joint geometry should all be considered during specification.

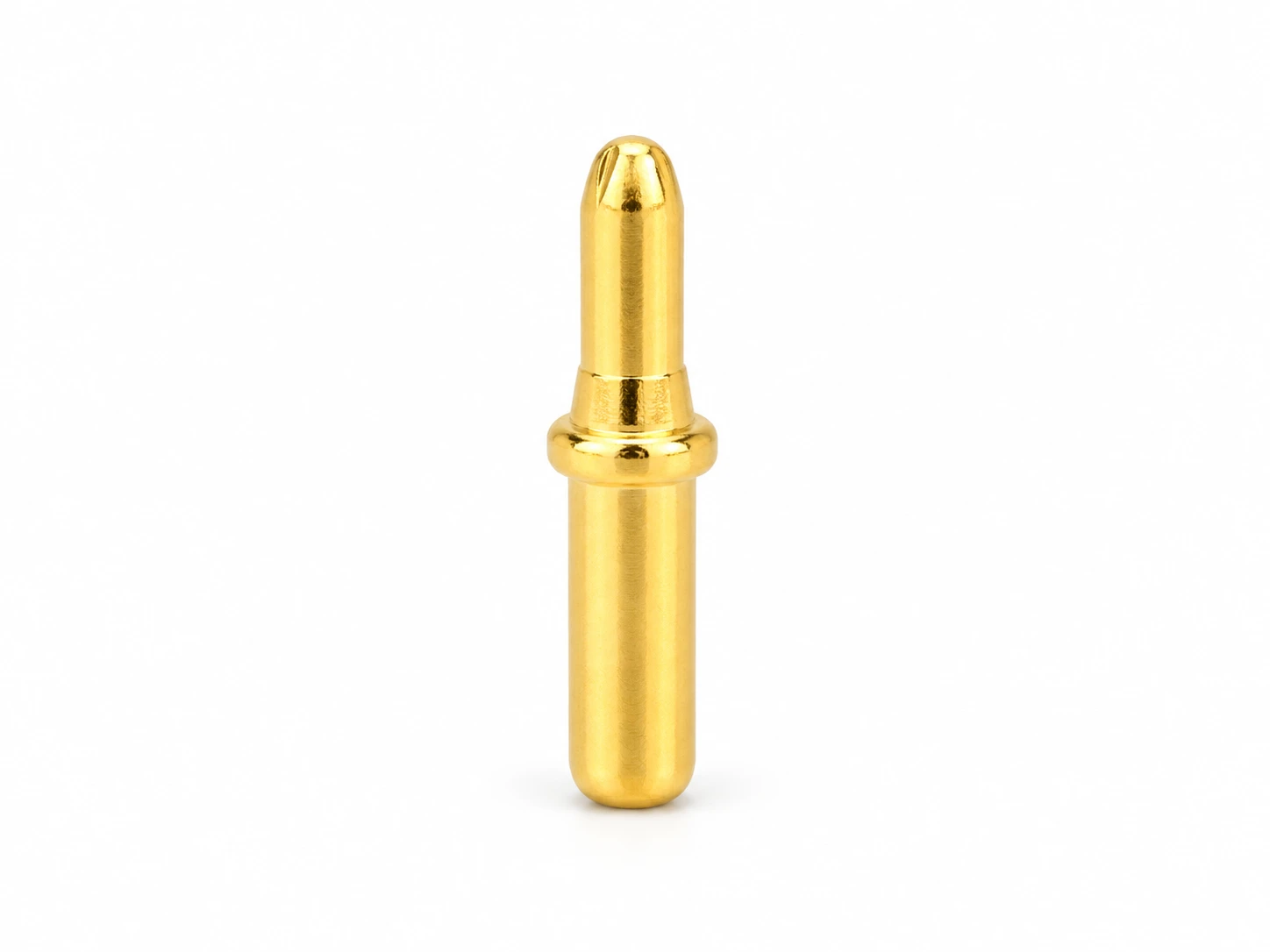

5. Overmolded
Custom hollow pins can also be designed for integration into molded plastic components. Retention features, positioning surfaces, sealing requirements, and exposure to molding temperature can be incorporated into the component design.
From Drawing To Precision Solution
Drawing Input
Provide 2D / 3D drawings or samples.
Material Selection
Confirm suitable material requirements.
Custom Solution
Receive your dedicated manufacturing plan.
Frequently Asked Questions
Yes. Custom hollow pins can be produced according to customer drawings, samples, 2D specifications, or 3D models. Dimensions, tolerances, materials, surface requirements, and functional features are reviewed before production.
Common customizable parameters include outer diameter, inner diameter, wall thickness, overall length, shoulders, grooves, flanges, end geometry, material, surface finish, and connection features.
Material selection depends on the required conductivity, mechanical strength, corrosion resistance, forming behavior, operating temperature, and application environment.
Precision contacts.
Engineered to perform.
From standard pin and socket contacts to made-to-drawing components, each part is developed around geometry, material, plating and production requirements.
Featured Product
Precision Pin Contact
Precision-turned pin contacts for demanding electrical and electronic connection systems.
Custom Hollow Pins for Secure Systems.
Custom pin and socket contacts engineered around your drawing, material, plating and production requirements.
